OpenGL Project
Current progress:
GLManager : In charge of OpenGL Render canvas building, releasing, environment control.........etc.
GLLighter : Control opengl light setting, enable, disable, position, coloring, ambient, diffuse, specular......etc.
GLCamera : Single Viewport/ multiple ViewPort, Viewing Matrix Operation, Multi-Thread Matrix, Ortho 2d projection, Ortho projection, Perspective projection. Kinds of EyePoint, ViewPoint translating, rotating........etc.
GLTexture : Load tens of kinds of raster file, auto-creating and resizing them to regular textures ( power of 2 in width and height).
GLVector : 3D Matrices operations.
GLMaterial : OpenGL Material Settings and using.....
GLUniFont : 2D / 3D English/UnitCode Font Display
GLTxtFont : 2D Texture Font Display.
RasManager : Raster File Load/Save, Bmp <-> DIB <-> Texture.....etc
ModelManage, ModelEdit, ModelTextureMap, ModelPaint, ModelLoadCPP, ModelLoad3DS : All about my 3d Model operating......
 |
 |

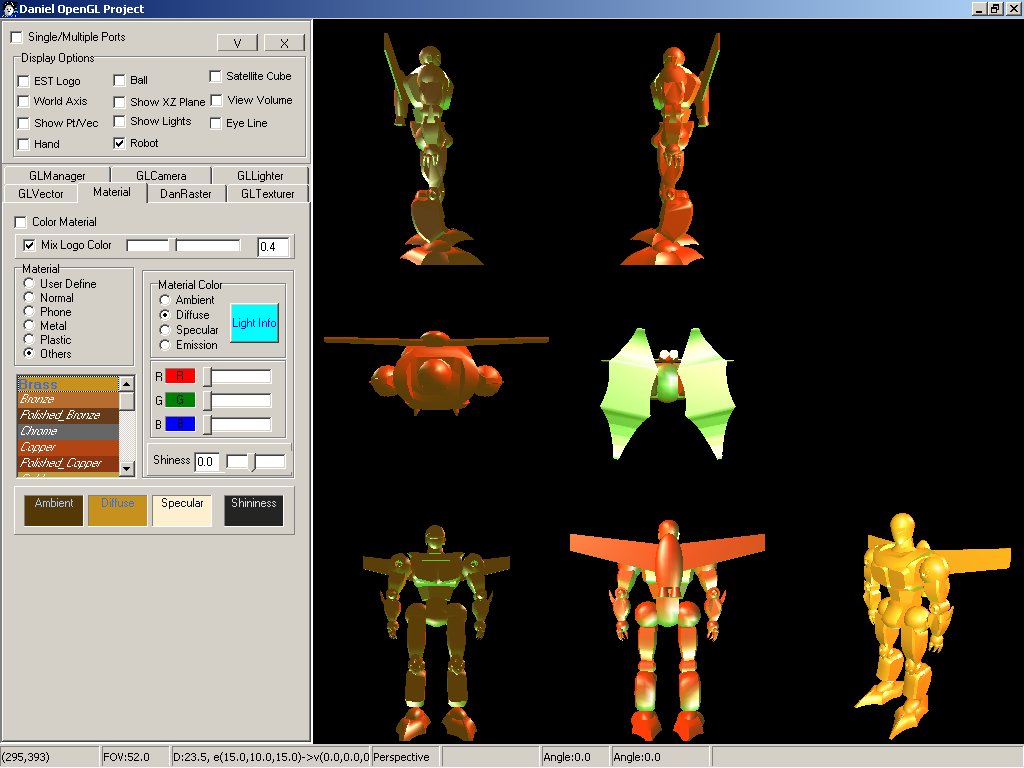

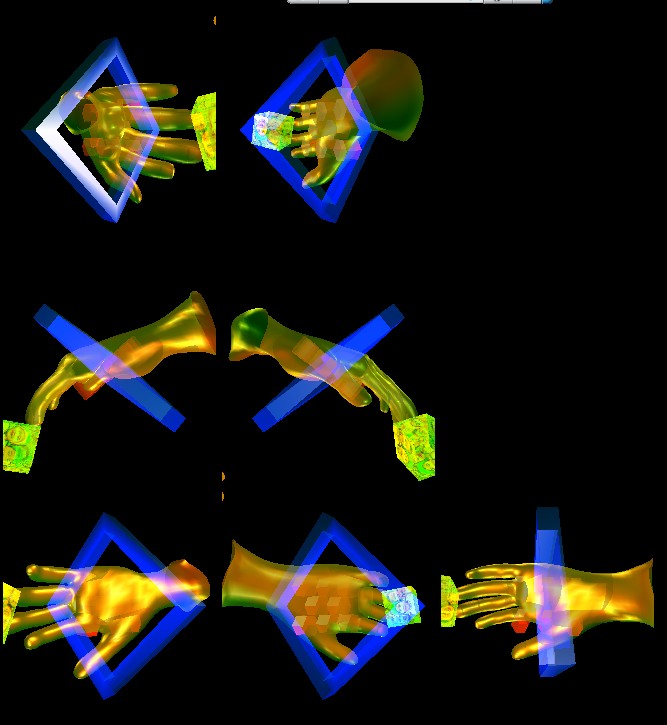

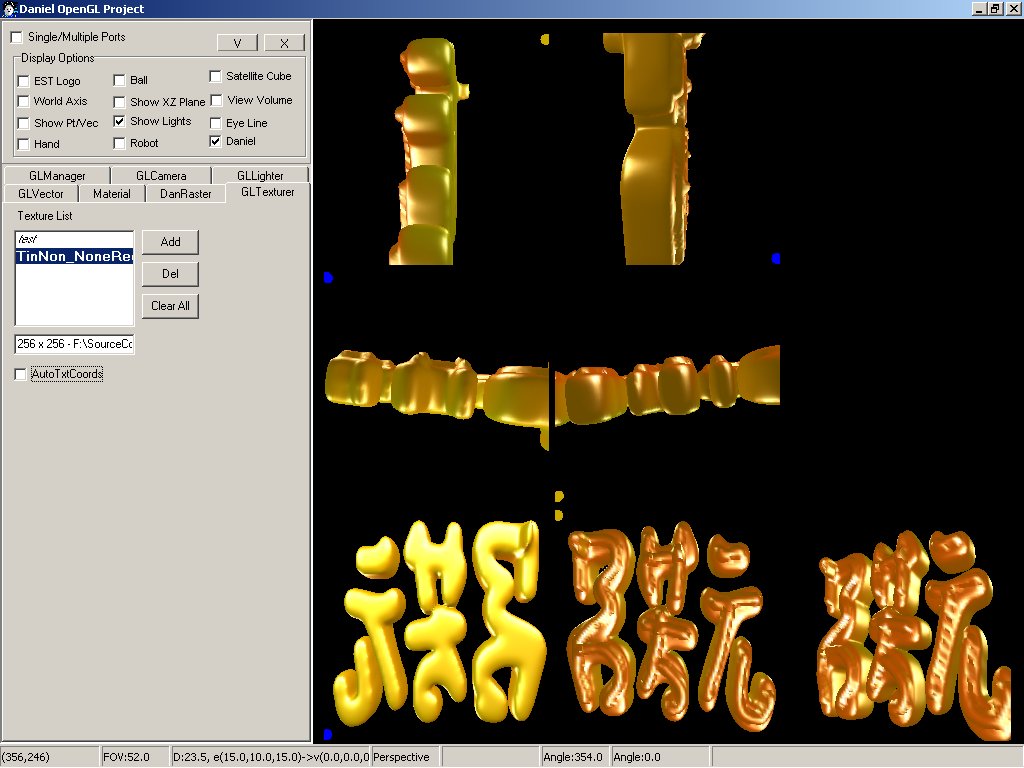

| Material : Glod. with Texture Reflection | 7 View ports in Perspective projection. Front, Back, Left, Right, Top, Bottom, User View.
|
 |
 |

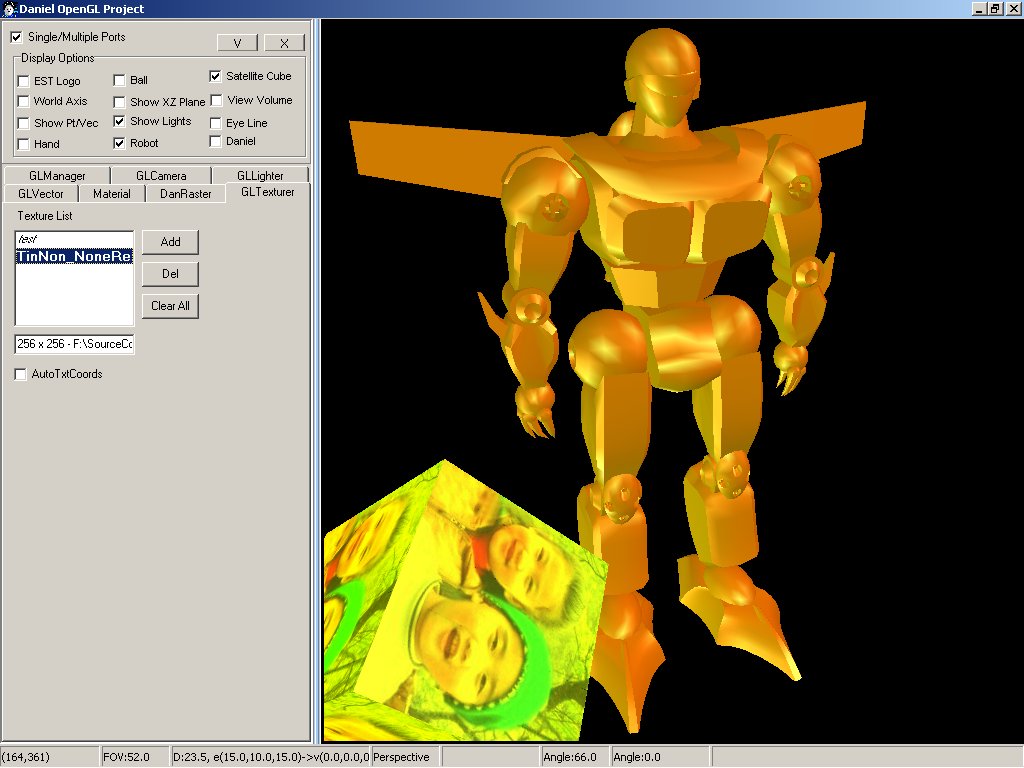

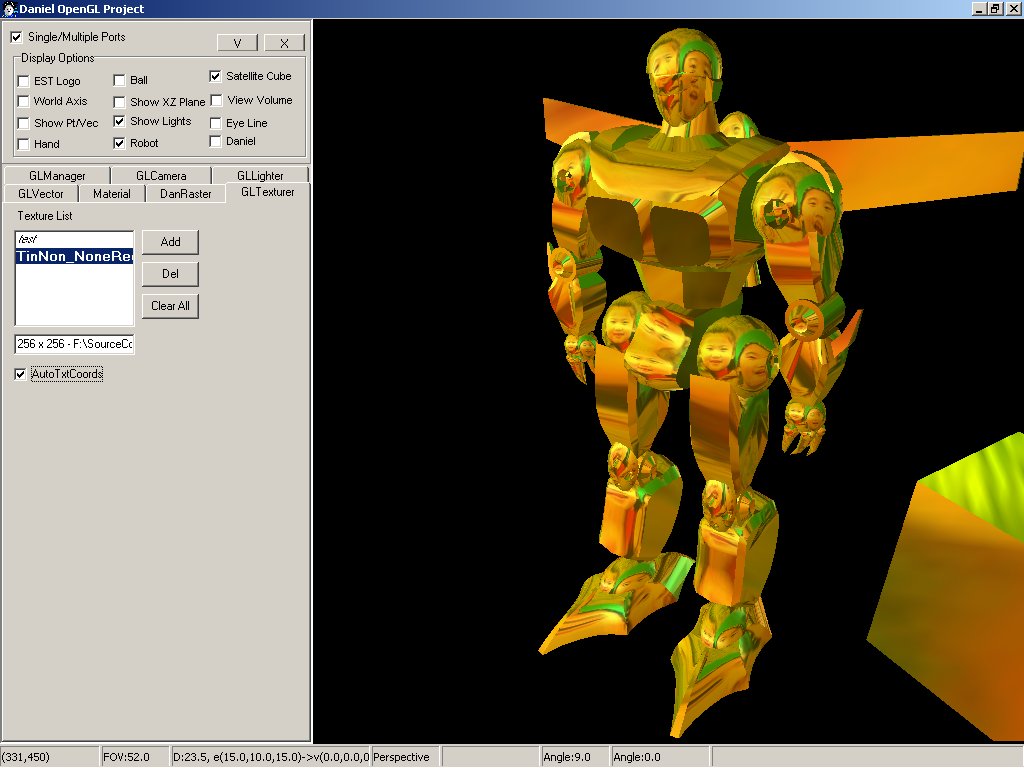

| Box Texture. Polished Gold. | 33020 Verticies
|
 |
 |
|

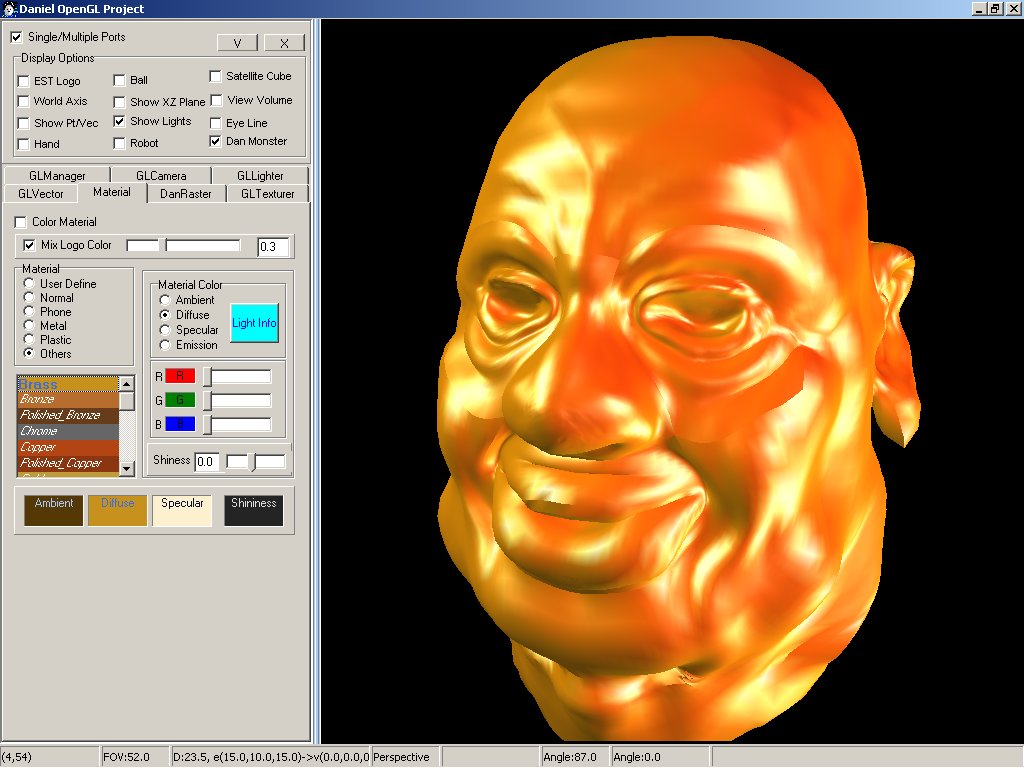

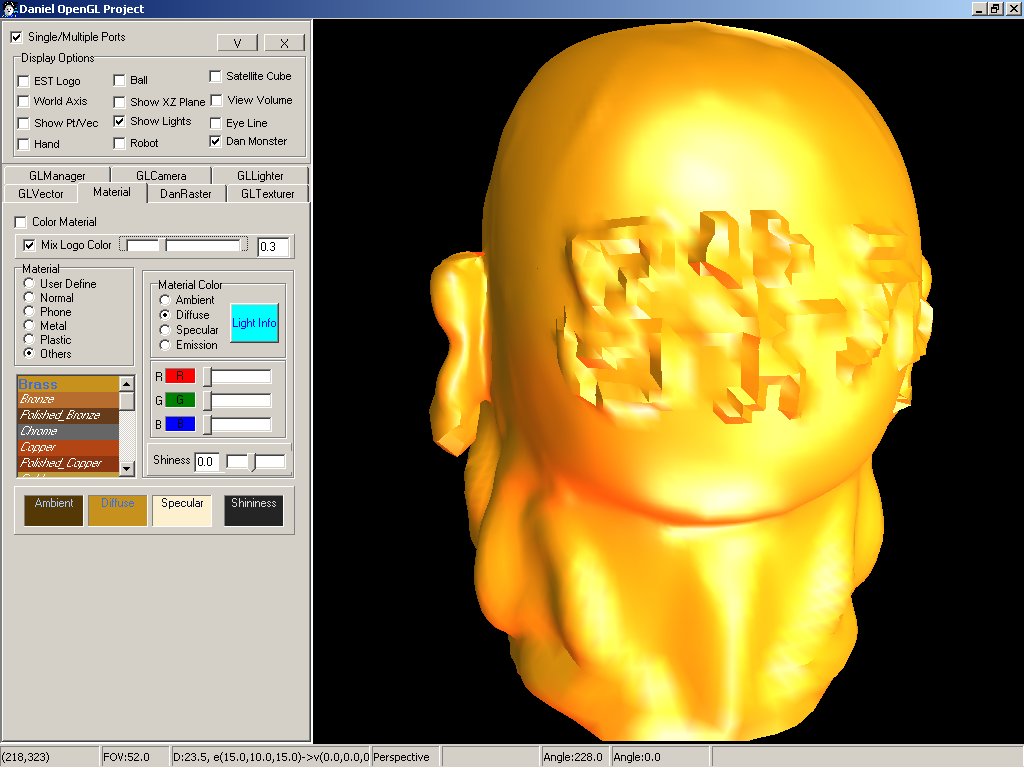

Model Monster, I create this model with ZBrush2 in 2004'8.
|
Yellow Omi light on it. |
 |
 |
|

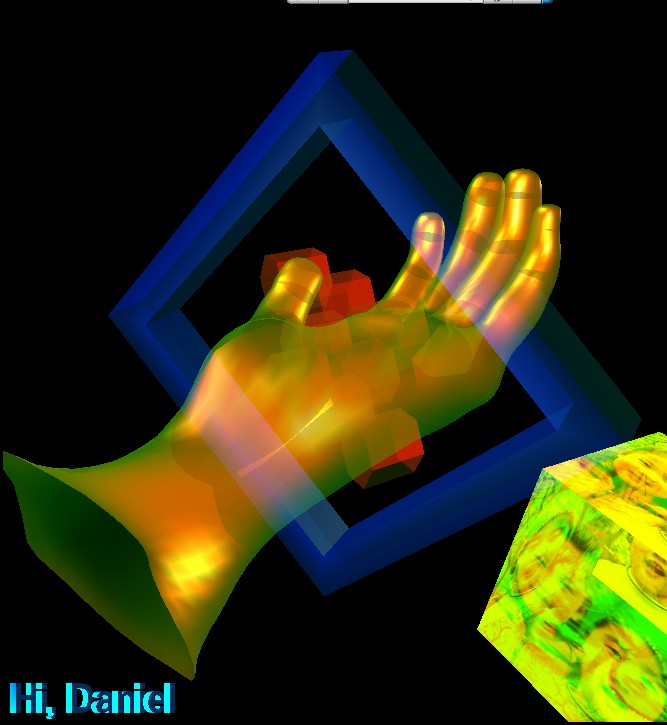

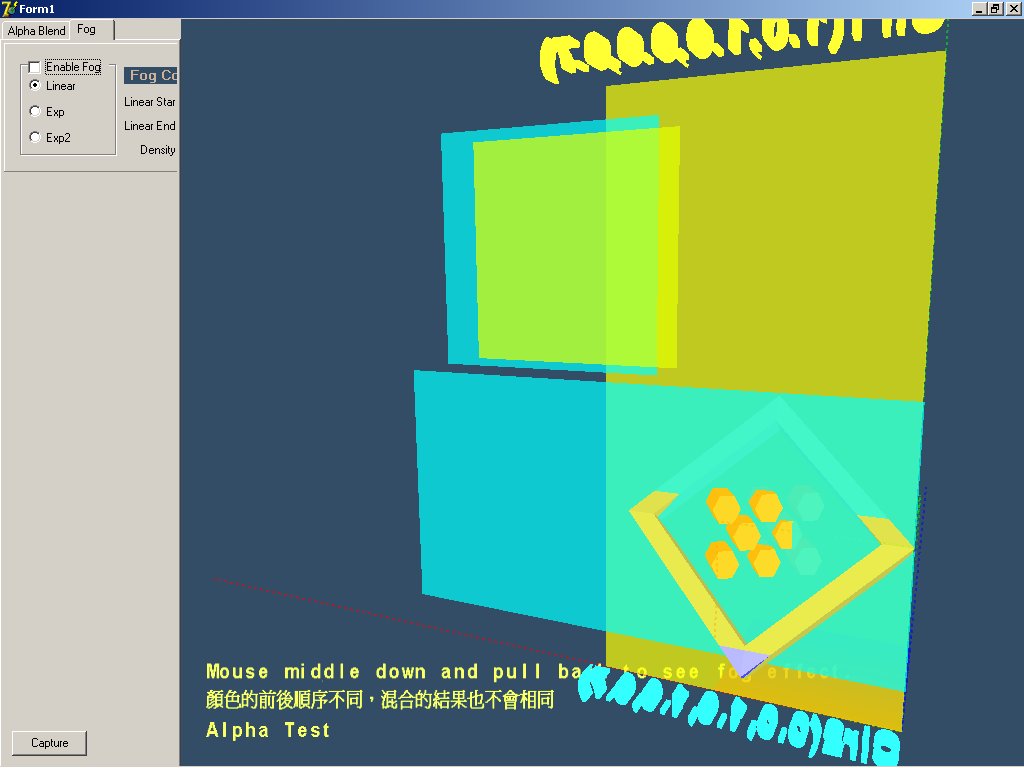

Alpha Blend Test |
Step 1 : Disable Blend, Enable Depth Test. Step 2 : Draw all opaque object first. Step 3 : Disable Depth Test and Enable Blend now. Step 4 : Draw rest Transparent objects. Step 5 : Disable Blend, Enable Depth Test. |
 |
 |
|

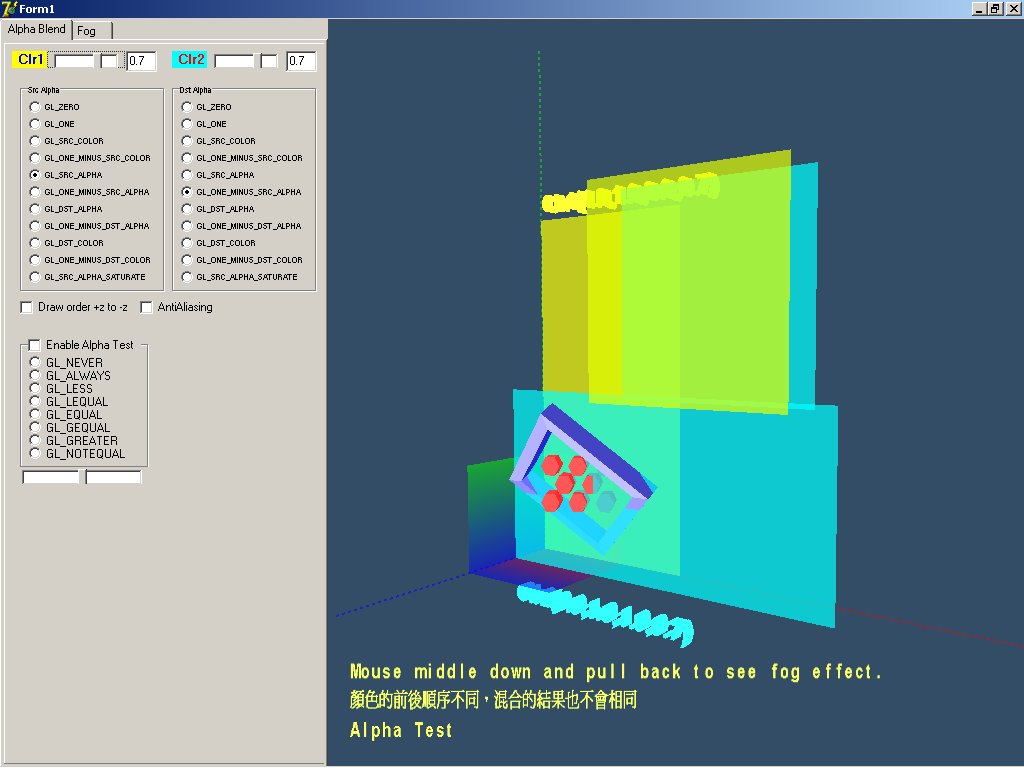

Here you can experience kinds of Alpha parameters to know what they real menas. |
 |
 |
|

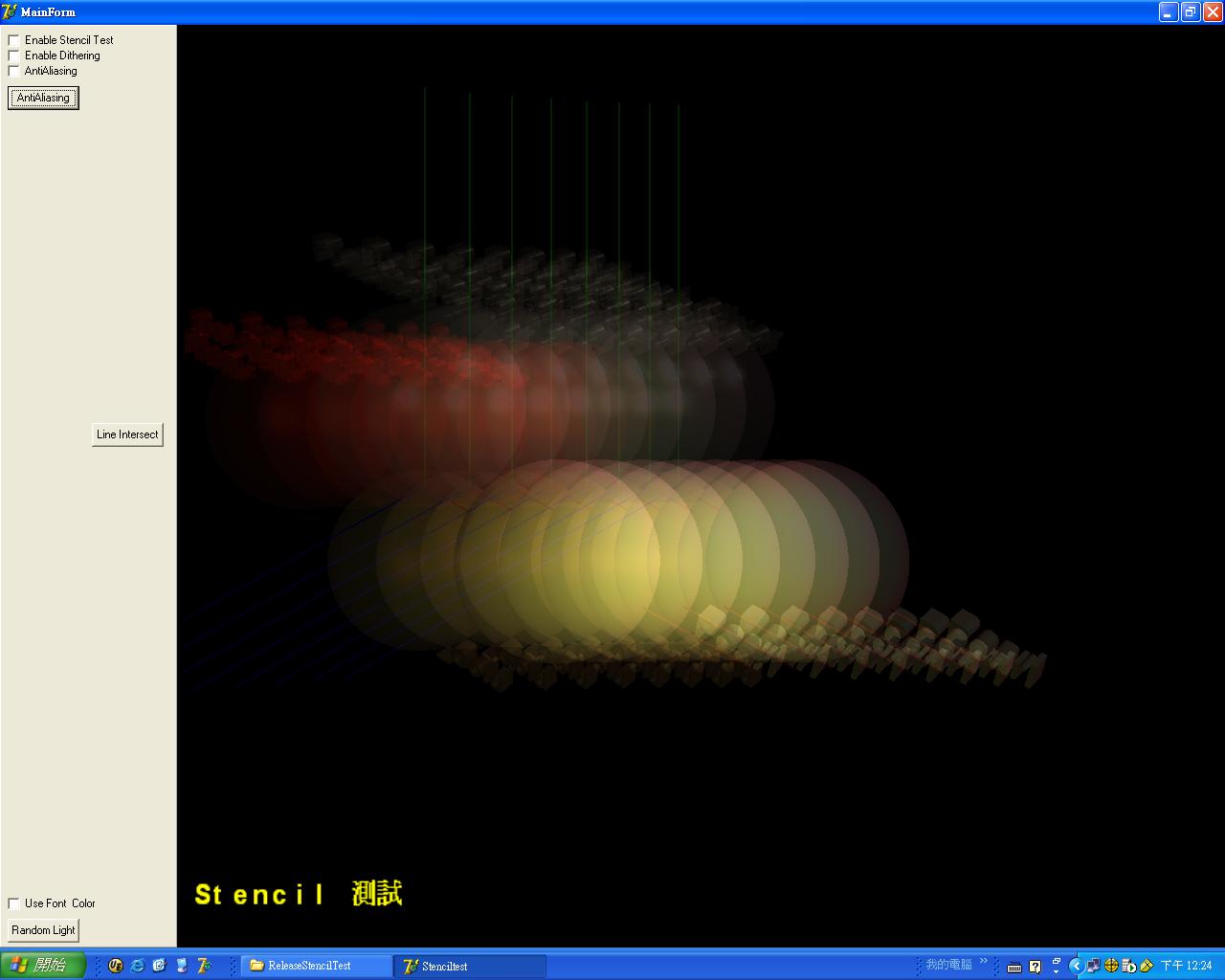

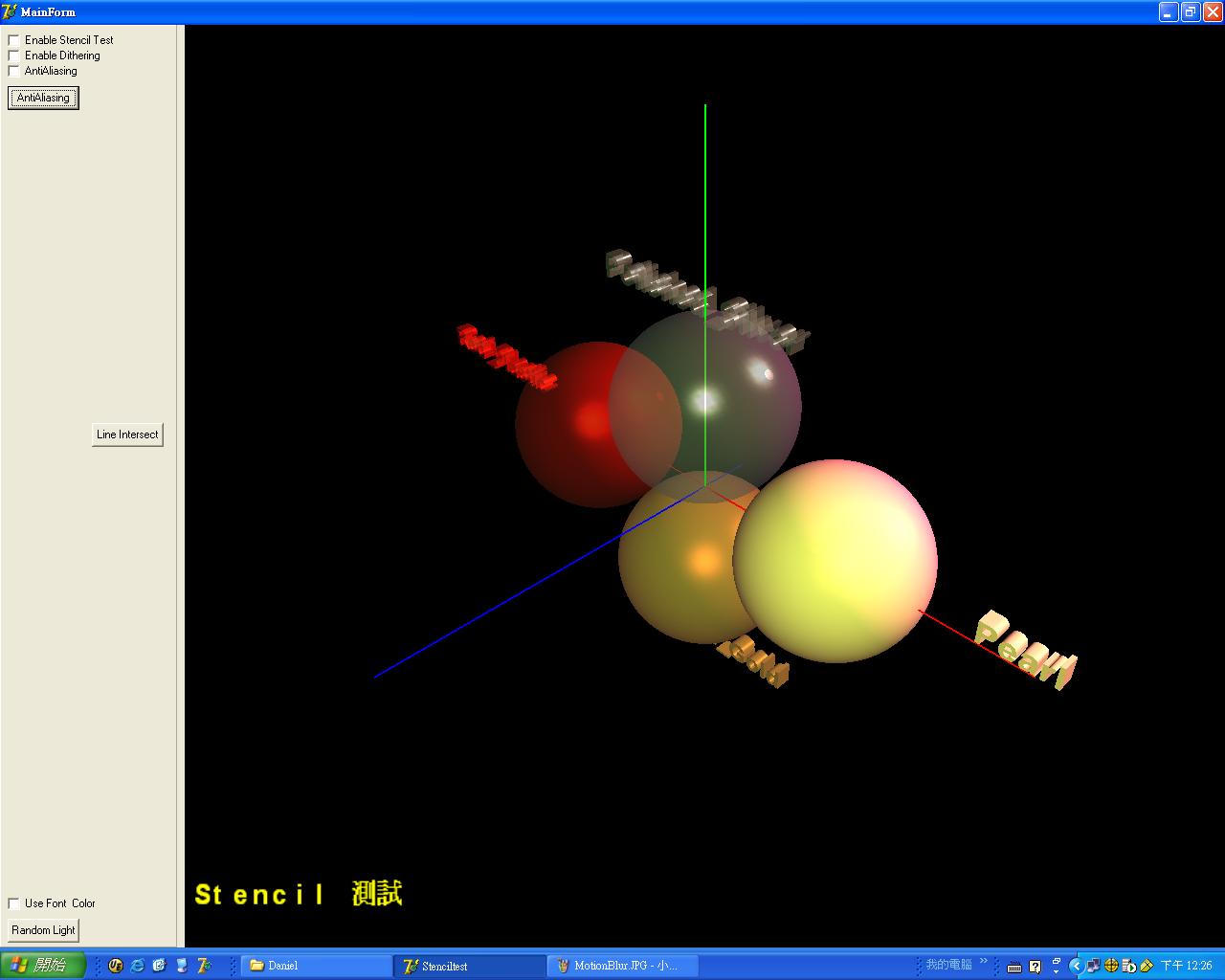

To see what's Stencil and blur effect. |

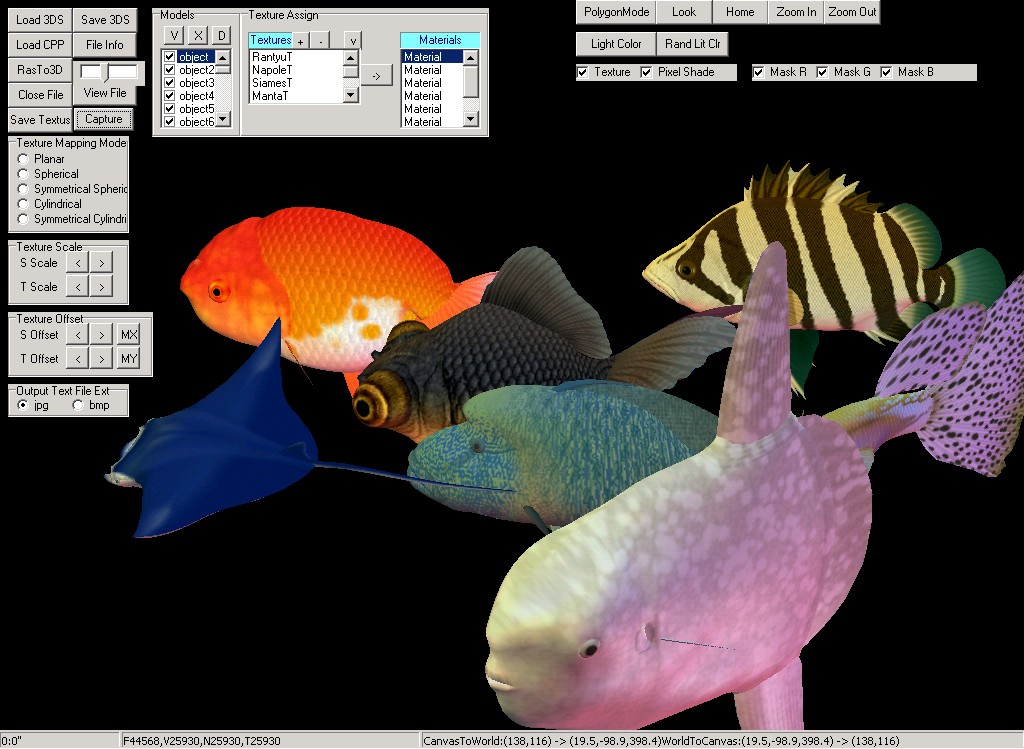

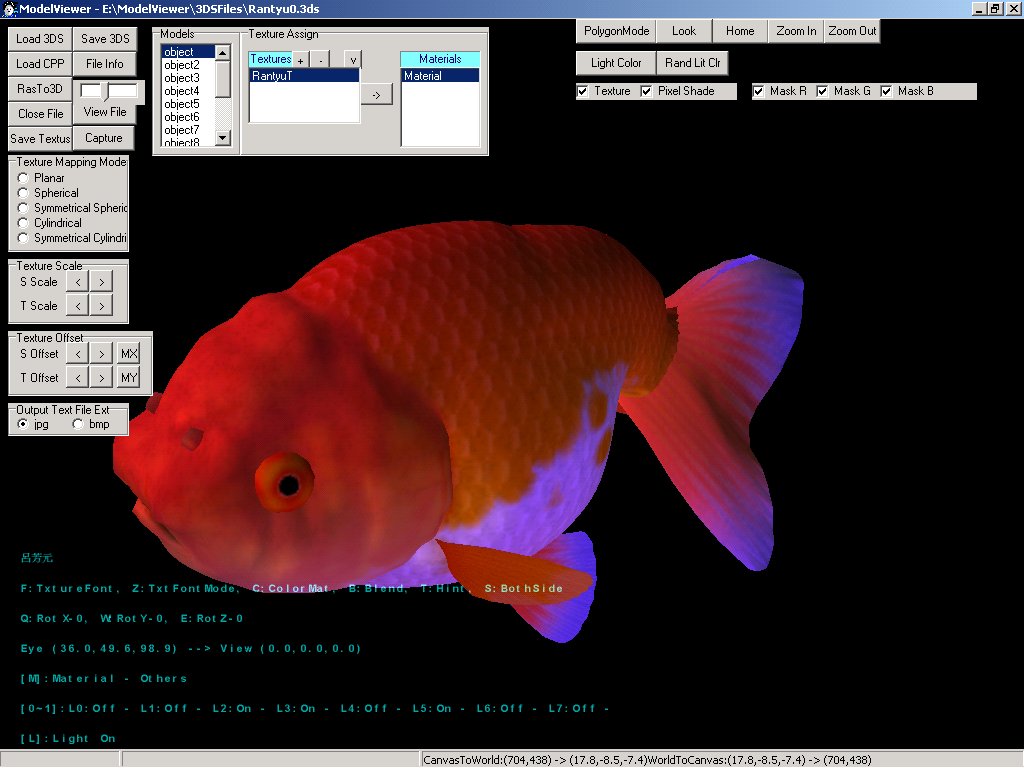

Model Viewer Demo Md3 Viewer Demo
 |
 |
 |
|
|
Load : *.Obj, *.CPP(output by 3dExplorer.exe), *.SMF, *.3ds, *.MD2 file Save: *.Obj, *.3ds, *.SMF, *.MD2 Raster To 3dModel ( or called Territory Generator) Texture Coordinates Generator (Spherical, Cylindrical, Planar ) Model QEM Simplify, Sphere, Cube, Box.....generating. |

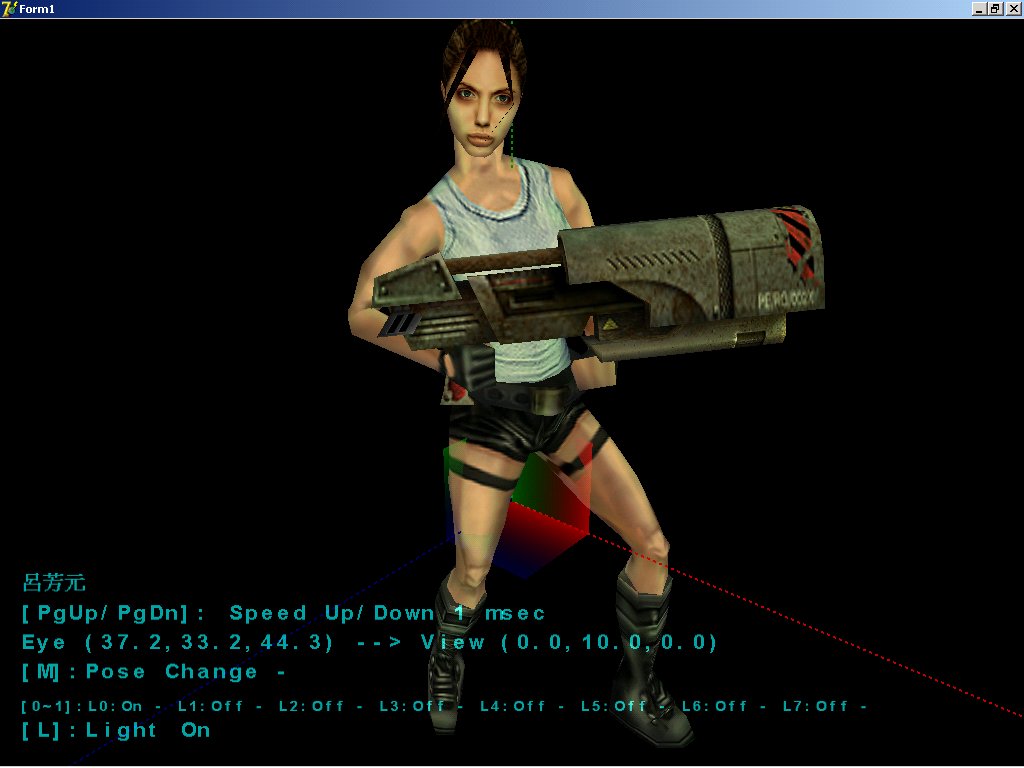

Load *.Md3 file and animated drawing. |

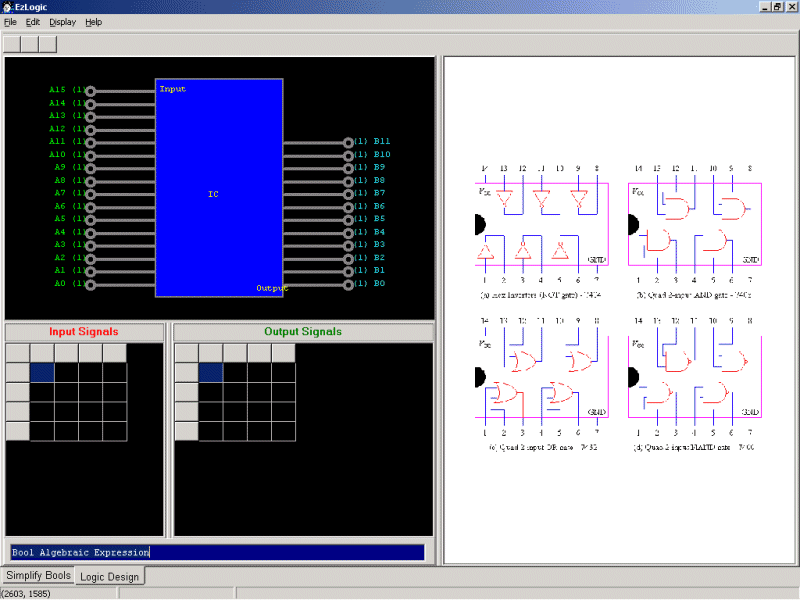

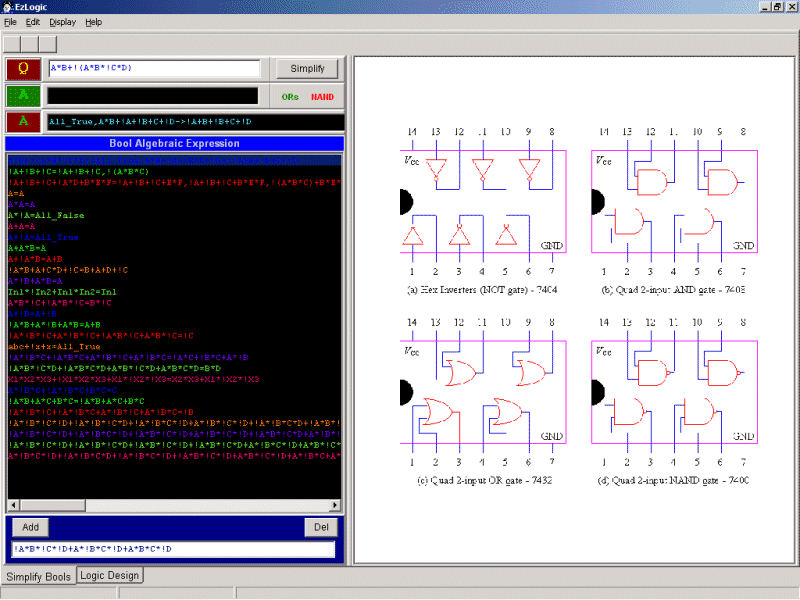

EzLogic Download
這是一套數位電路輔助設計軟體。有讀過數位電子的都知道，要降低 IC 的數目，就必須化簡布林代式，通常用 砍諾圖法，非常難。這套可以自動幫你化簡布林代式，提高你設計電路的效率。 不用再使用一大堆的 IC 7410 , 7411.......等等。
|
|
 |
DesktopGuard Download
保護你的螢幕，不受別人侵擾，如同加上一張保鮮膜一樣
|
圖略 |
